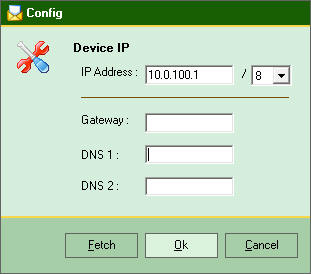

Note: Both RSF and Archiver devices must have their network configs done properly for these to work. Insert your needed IP, subnet and gateway.
Network

Configuring Master ReSieve.

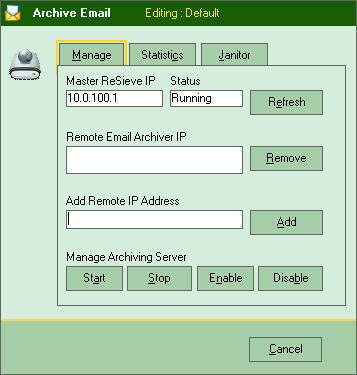

Click Add Ons / Remote Archiving module

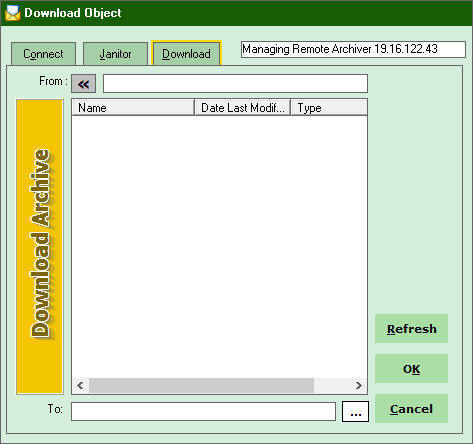

Download

The master RSF has to know at what IP address the Archiver device is.
Add the remote IP address and click Add. These 2 modules will recognise each other and make the proper configurations so that they can work together.
That done, live backups of all the emails that come through the RSF device will be done.
Data being transmited between Master and Archiver is encrypted. So your Archiver device can be anywhere on the internet and your data will be safe.

Buttons
Refresh : will refresh the list of IPs that RSF will send a copy of the newly arrived email to. Can be more than 1.
Remove : Select the IP in the list box on the left and click Remove. RSF will no longer send copies of emails to that IP.
Add : Adds the IP of the archiver device to the list and instruct RSF to send copies of emails to that IP.
Start : Start the remote copying if has been stopped. The state of the daemon will be shown in the status box
Stop : Remote copy can be stopped momentairally. The state of the daemon will be shown in the status box
Enable : Enables remote copying of emails when reboot occurs.
Disable : Remote copying will not be done when device is rebooted.

Archive

By default RSF has 20Gbs of free space to recieve emails.
In the list is included the RSF IP of its own(default) and the remote IPs of Archiver devices.

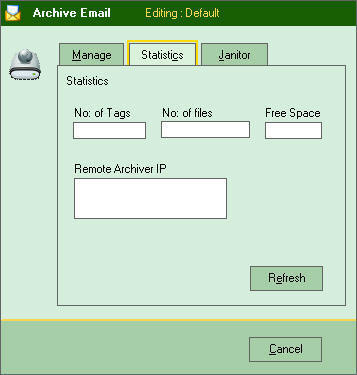

Select the IP you wish to get statistics on and click Refresh.

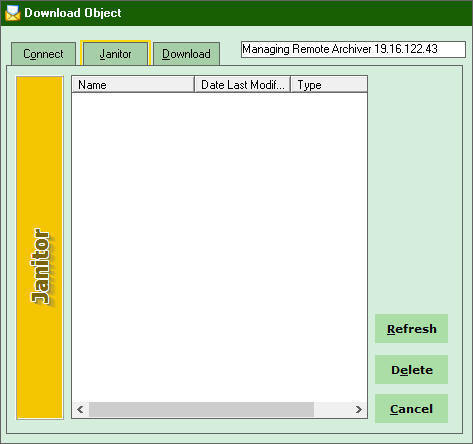

Select the Janitor tab, the following will show up.

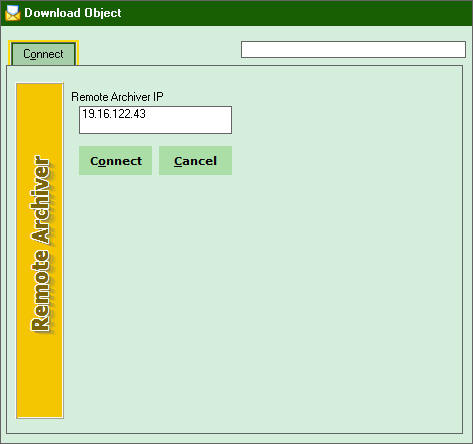

Archiver Connect

Stats

Janitor
