Defaults for Jade Networks products,
IP : 10.0.100.1, Password : jade
or
Connect a monitor and a keyboard to the device and boot device in "Reset to
defaults" mode and follow the instructions on screen.
Installation process

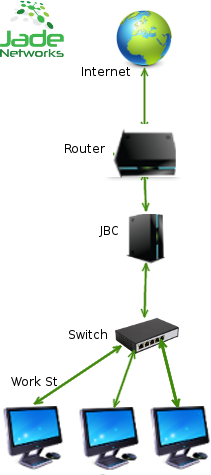

place JBC device between Router and switch like so.
Note : Change the default password as soon
as possible.
Minimal requirement for all Jade's software. Windows 2k and up.
Install JBC.exe on your windows computer, follow on screen
installation instructions.
Connect to your JBC device with JBC.exe
Changing the IP address via JBC.exe
Connect the your device, click menu/Tools/Config
 .
Change admin
password
click menu/Tools/Change Password
Note: If your
choke does not work. Swap destination/source and/or Dnload/Upload. If
using port, watch that too. 90% of errors are related to this.
Think of it as if you are sitting in between the two ports of JBC device
controlling incoming and outgoing packets.
|

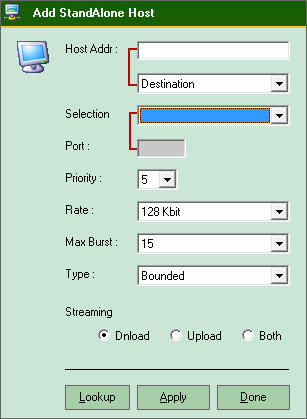

Create single IP/Host choke.
click button Host
Most options of this window are self explanatory. As you can see.
Bandwidth Type.
Isolated - Any configurations inserted with
'isolated' will not lend out bandwidth to others asking for
bandwidth.
sharing - This configuration is giving permission
to others asking for more bandwidth if it is not
using it all.
bounded - Configured as bounded, it will not try to
borrow bandwidth from other hosts and/or subnets.
borrow - You give permission to borrow bandwidth
from other hosts having the sharing option.

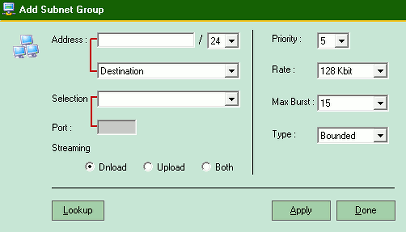

Create IP/Subnet choke.
click button Subnet
Same as host configuration, just adding a mask to it.

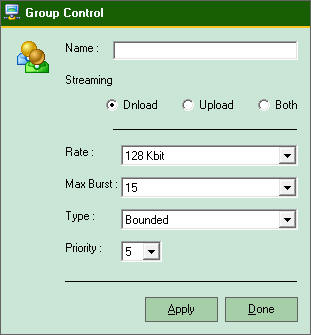

Create Group choke.
click button "Gr host"
Name - It's just a tag, enter a description of your
choice.
After, and only after you created a group, you will be able to add hosts
to it. All hosts in a group will share its group bandwidth.
ie: if configured at 10mbs, 2 hosts are added, both are
downloading, they will have 5mbs each. 1 stops downloading, the other
gets full 10mbs.
The remaining configurations are the same as for Hosts.

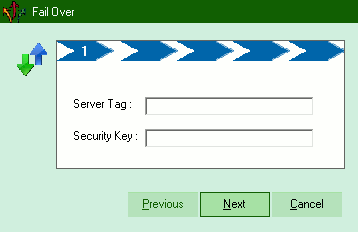

Redundancy
Very simple, follow instructions on screen.
Sms capable.
|
